BNBX0
Stainless steel Li-ion and Li-metal
BATTERY CONTAINER
with inner packaging for P901, P903, P908 and P910 storage and transportation.

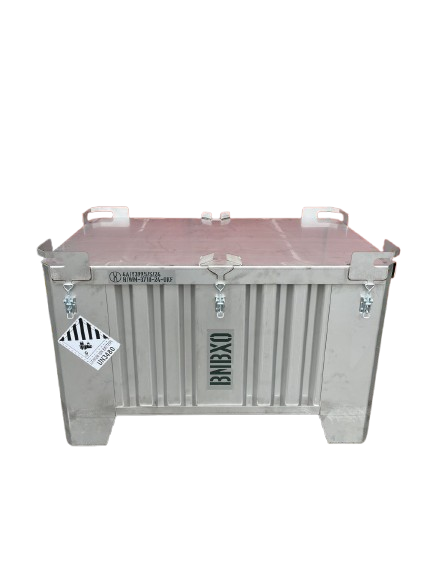

BNBX0 battery container solution
Our largest container, which is capable of handling up to 300 kg of net weight. Specifically designed to fit Euro-pallet dimensions and it is stackable up to 1+1 height. Developed for our Clients, who prefer to maximize their warehouse space utilization.
Technical specifications
| Suitable for | P903, P908, P909, P910 |
| External dimensions | 1118 x 762 x 730 mm |
| Useful dimensions | 1033 x 633 x 512 mm |
| Useful volume | 334 liter |
| Own weight | 91,5 kg |
| Max. net weight | 399,5 kg |
| Max. loading height | 1414 mm [1+1] |
Product Specification
Shall be used in case of returned battery or cell. in original, undamaged packaging. Or stricter packaging instructions (P908,P910). Non OEM boxes, or other product’s packagings are permitted.
- transferable, ADR compatible for mixed materials also
- storage friendly (stackable) (to fit of the DIN 15141 palette)
- movable by forklift
- weatherproof and enviroment friendly, outside storable
- no thirdparty or unauthorized acces
- immediatley applicable for recycling
- Batteries/cells are enclosed into electrolit absorbent, inner packaging works as vibration reducer.
- Inner packaging material has to be fireproof and provide adequate thermal insulation between cells
Licences, certificates
- Generally: UN recommendations of the transport of dangerous goods
- Road transport: ADR (European Agreement concerning the International Carriage of Dangerous Goods by Road) RID-ADR: 6.1.5.3, 6.1.5.6
- Rail transport: RID (Regulations concerning the International Carriage of Dangerous Goods by Rail), COTIF (Convention concerning International Carriage by Rail) RID-ADR: 6.1.5.3, 6.1.5.6
- Inland waterway transport: ADN (European Agreement concerning the International Carriage of Dangerous Goods by Inland Waterways) ADN: Chapter 6.
- Maritime transport: IMDG (International Maritime Dangerous Goods Code) IMDG Code: 6.1.5.3, 6.1.5.6
- Air transport: ICAO TI (International Civil Aviation Organization Technical Instructions for the Safe Transport of Dangerous Goods by Air), IATA DGR (International Air Transport Association Dangerous Goods Regulations) IATA: 6.3.3, 6.3.6
Nominations
4G/Y399,5/S/*/H/WM-3710-24-OKF
Inner packaging
CIRRUX® is an ideal packaging material for shipping defective Li-ion batteries. It is non-conductive, inert, non-flammable and has low thermal conductivity.
Extover ® granulate displaces oxygen and separates it from the fuel. Like glass, Extover® melts at a certain temperature. The granulate absorbs a lot of heat in the form of melting energy, thereby cooling the fire and forming at the same time an impermeable layer over the fire load. A reaction with oxygen is effectively prevented.
